1. Boiler feeding.
2. Fire fighting .
3. Pure water supply.
4. Cooling system.
5. Water treatment.
6. Pressure Boosting.
7. Water treatment.
8. Pressure Jet cleaning.
MATERIAL SPECIFICATIONS
1. Pump Base : C.I. Casting / S.S .
2. Lower Casting : S.S.304 / 316 /316L .
3. Upper Casting : S.S.304 / 316 /316L.
4. Pump Casting : S.S.304 / 316 /316L
5. Impellers : S.S.304 / 316 /316L .
6. Diffusers : S.S.304 / 316 /316L .
7. Bush Bearings : Tungsten Carbide.
8. Shaft Distance Bushes : S.S.304 / 316 / 316L
9. Motor Mounting Bracket : C.I.Casting / S.S. .
10. Filling / Draining Plug : C.P.Brass .
11. Elastomers : Nitril / V-ton.
12. Mechanical Seal : Carbon v/s Ceramic

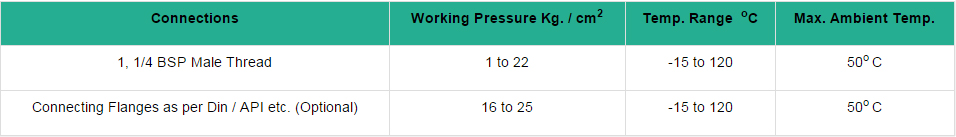

CONNECTIONS & WORKING RANGE

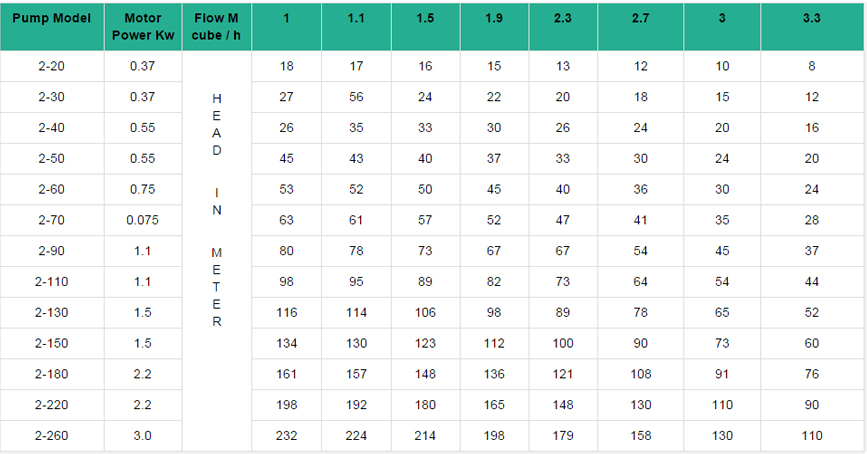

PERFORMANCE DATA OF SPVS – 2

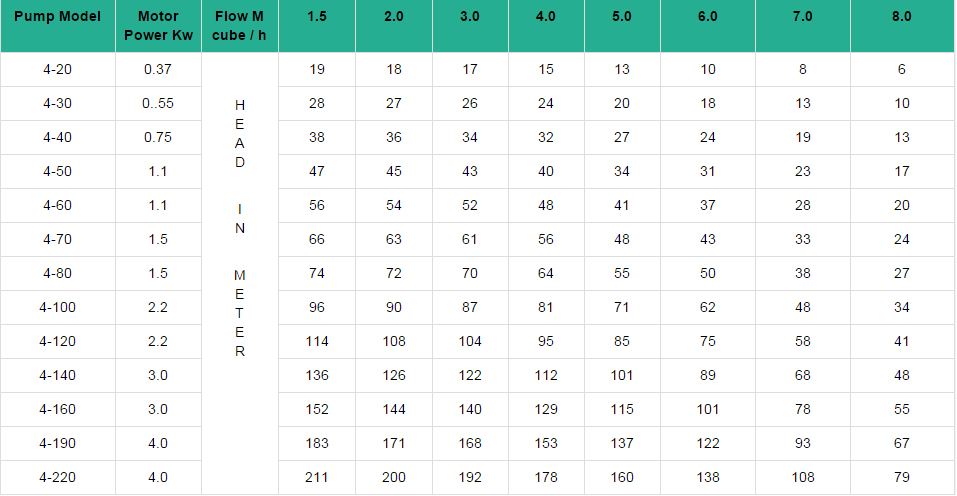

PERFORMANCE DATA OF SPVS – 4
